Customization Guide
Welcome to our Customization Guide!
This guide will serve as a glossary for the various options we have on our website. If you have any questions that are not answered here, please contact us through one of our channels.
ARCADE BUILDER
Preview your controller with our arcade builder app!
Preview layouts, button colors, artwork and much more. To get a better idea of how your custom controller will look in person, be sure to try out our app! We are working on an English version for it too!

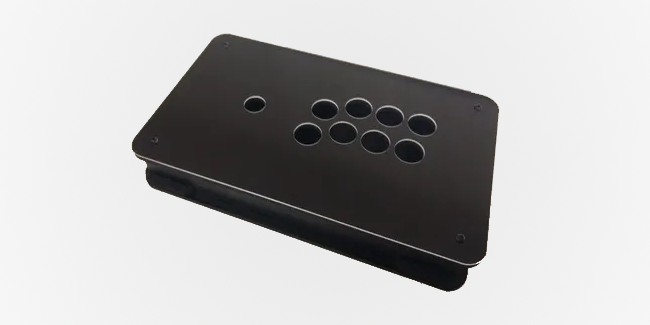

ENCLOSURES
We have several models of enclosures available in different sizes and colors of acrylic, get a better idea of the actual dimensions of the cases and their appearance by accessing any product page.

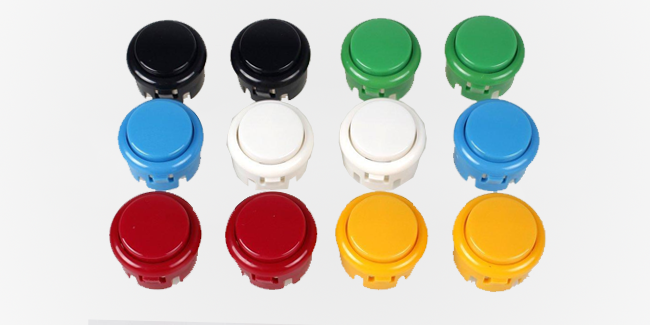

SANWA CLONE
Chinese buttons, clones of the popular Japanese brand Sanwa. They are clicky and are made of ABS plastic.

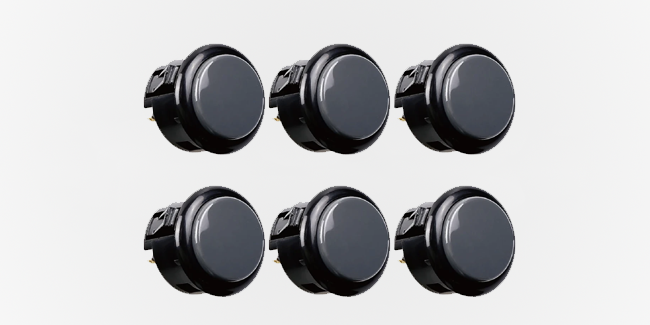

SANWA OBSF
The most popular button brand in Japan and the world. Exceptional performance, very sensitive to the touch and highly durable parts, made with a more resistant plastic.

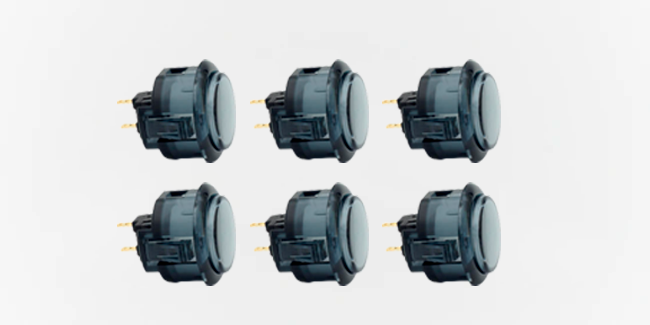

SANWA OBSF-C
All clear plunger and housing Sanwa buttons, the most popular button brand in Japan and the world. Exceptional performance, very sensitive to the touch and highly durable parts, made with a more resistant plastic.

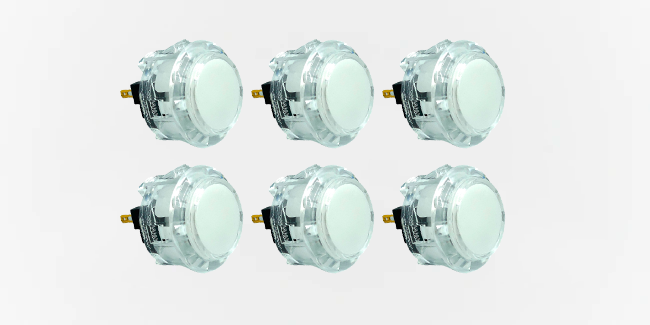

SANWA OBSF-CR
All clear housing Sanwa buttons, the most popular button brand in Japan and the world. Exceptional performance, very sensitive to the touch and highly durable parts, made with a more resistant plastic.
SANWA OBSF-J
All metallic Sanwa buttons, the most popular button brand in Japan and the world. Exceptional performance, very sensitive to the touch and highly durable part, made with a more resistant material.

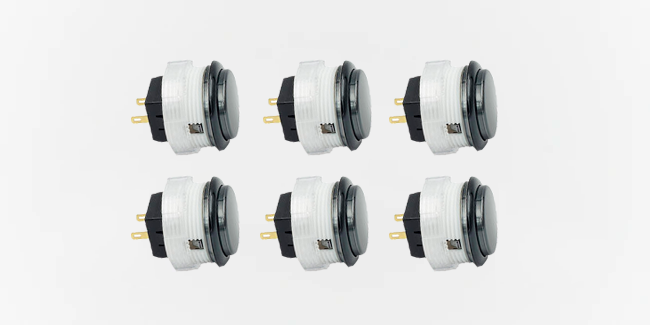

SAMDUCKSA SDB-202M
Samducksa button that features a mettalic body and diver design, built by a Korean Company with over 30 years of experience in the arcade industry
In addition it is equipped with a micro switch Cherry MX Silver which is
triggered part of 1.2mm on 3.4mm of movement of the button.

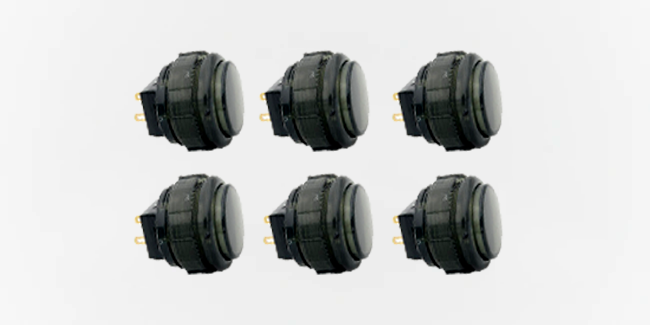

SAMDUCKSA SDB-202C
Samducksa buttons that features a translucent body and diver design, built by a Korean Company with over 30 years of experience in the arcade industry.
In addition it is equipped with a micro switch Cherry MX Silver which is
triggered part of 1.2mm on 3.4mm of movement of the button.

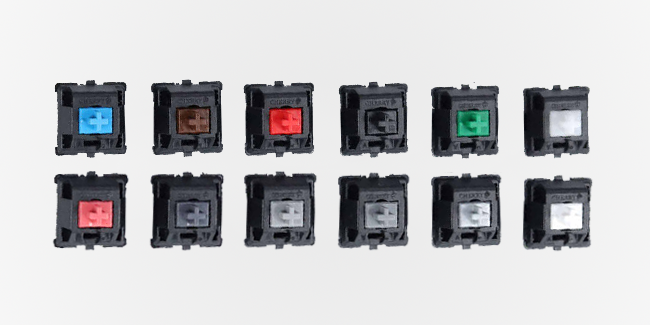

CHERRY MX
Buttons typically used on mechanical computer keyboards. Highly responsive and touch sensitive. The top part of the button can also be changed easily.

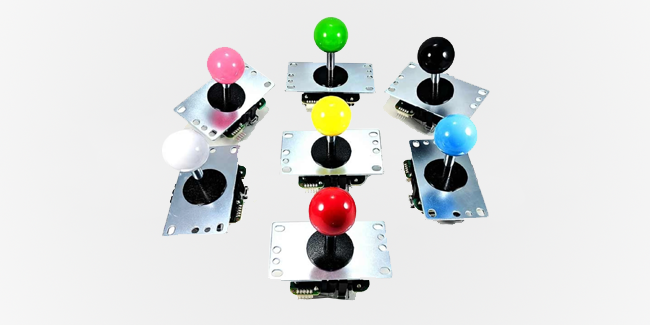

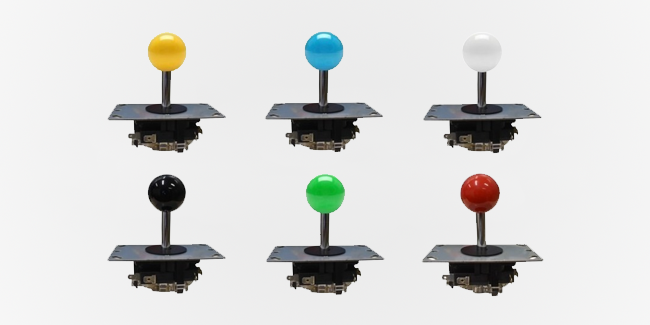

CLONE JLF STICK
Chinese version of the famous Japanese brand Sanwa. Modular joystick, you can change its microswitch, shaft and top. It has a lower quality than the original product while having similar sensitivity.
ORIGINAL SAWNA JLF STICKS
The most popular brand of joystick in the world, imported from Japan. It's a modular joystick, you're able to change its microswitch, shaft and top. Exceptional quality with high sensitivity.
Types:
- SANWA JLF-TP-8YT:
By default, this joystick is mounted with a GT-8F 4/8 way restriction guide.
- SANWA JLFD-TP-8YT
*By default, this joystick is mounted with a GT-8F 4/8 way restriction guide.*
- SANWA JLF-TPRG-8BYT
*It has a D2RV-G-SD3 microswitch and a 4/8 ways restrictor.*

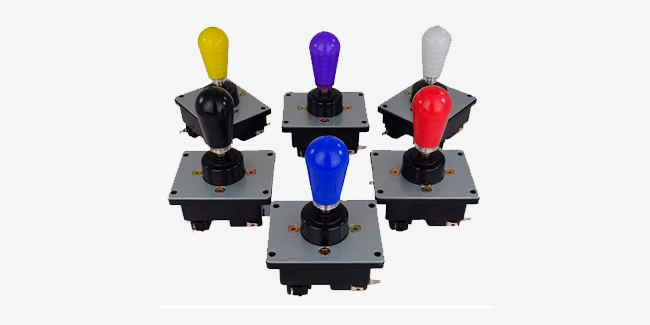

SAMDUCKSA ORIGINAL STICKS
*One of the most popular brand of joysticks in the world, South Korean company with arcade Professional quality and more than 30 yeas of experience in the arcade industry.*
Types:
- Crown CWL-309Helpme-K-KMS-ST35
*Non-unscrewable battop, molded on the shaft with a
GERSUNG GSM-V1623A3 microswitch.*
- Crazy Dongpal Crown CWL-303MJ-DX-ST35
*It has a short base (stick base), a 35gr membrane on a Crown DX base, an
actuator for quick contacts and a short rod with a twist handle and a Gersung GSM-V1623A3 (4.8mm) Microswitch.*

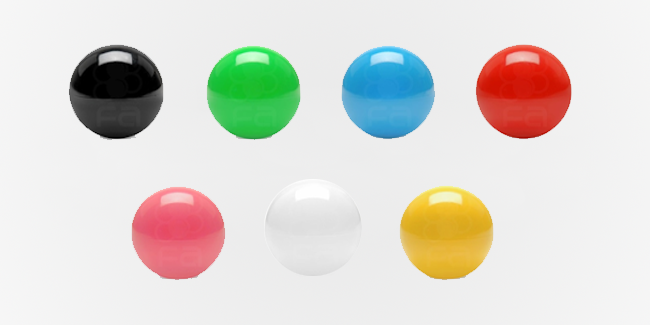

BALLTOP
Most commonly used shape in Asian controllers. It has a smaller contact area, more recommended to smaller hands.

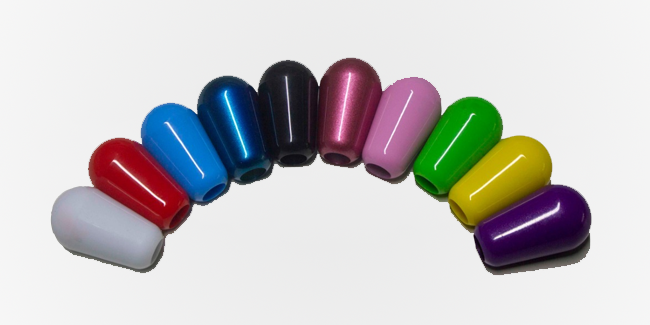

BATTOP
Conventional shape in American joysticks. It has a larger contact area, facilitating handling.

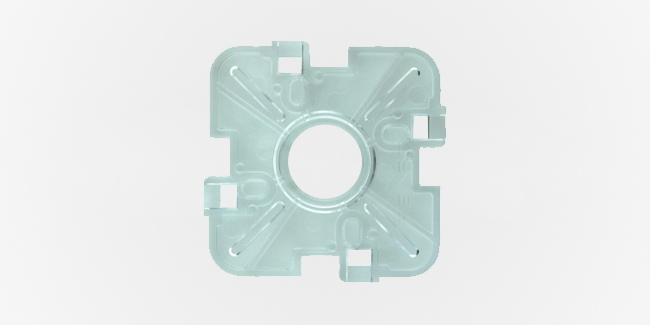

SQUARE GATE
The type of restrictor gate most used in eastern controllers, the square restrictor gate only allows the joystick to reach the four cardinal directions.

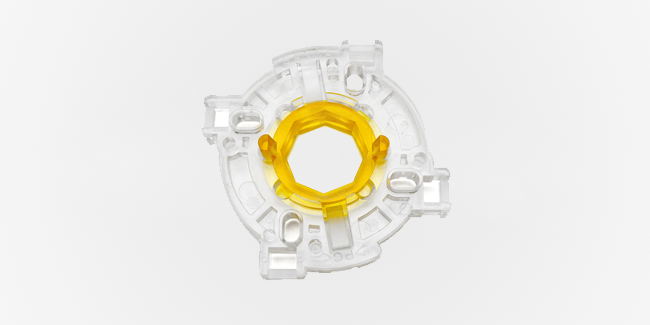

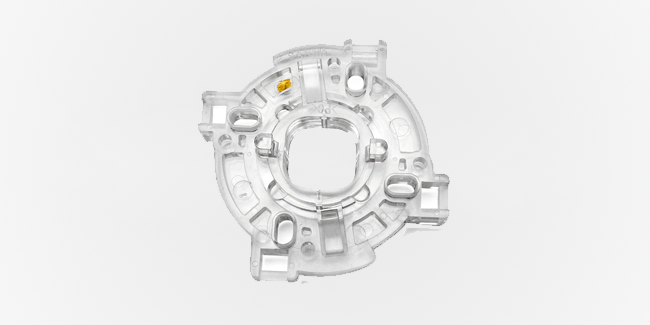

OCTAGONAL GATE
The octagonal restrictor gate supports eight directions. Common in many regions of the world, used to better sense diagonal directions.
CIRCULAR GATE
The circular restrictor gate supports all directions for the joystick. It is the type of restrictor used in Brazilian arcade cabinets.
PICO GP2040-CE
Made by FeralAI, TheTrainGoes and the Open Stick Community.
Compatible with the following systems:
PS3 / PS4 / PS5 Legacy / Switch / PC
Attention! On Playstation 5, this PCB will only work on PS4 games installed on PS5. If you want PS5 fighting games support, you will need a compatible dongle, such as Mayflash Magic-S Ultimate.

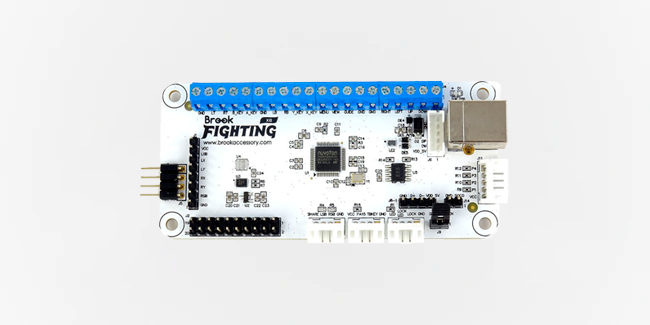

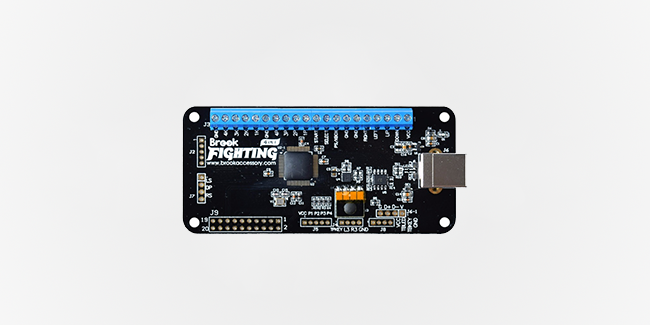

BROOK XB FIGHTING BOARD
The Brook XB Fighting board is an interface board.
Compatible with the following systems:
Xbox Series X | S, Xbox One, Xbox 360, Xbox Original and PC.
Attention! Compatible with all Xbox versions (adapter required for 1st generation) and PC.

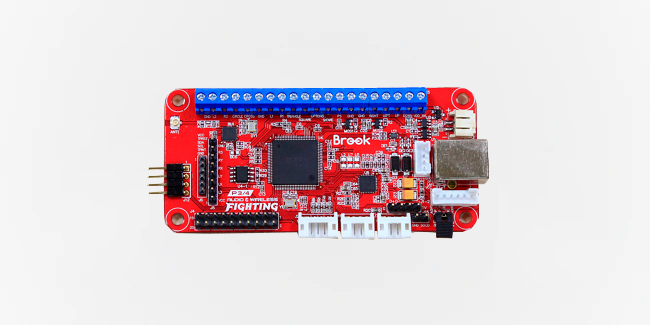

BROOK WIRELESS
The Wireless Fighting Board from Brook will allow you to use your controller in wireless mode.
Compatible with the following systems:
PS3 / PS4 / Switch / PC
Attention! *This product requires a PS3 controller type battery to operate, which is not included*
BROOK UNIVERSAL
Brook PCB, known worldwide.
Compatible with the following systems:
XBOX X|S / XOne / X360 / PS3 / PS4 / PS5 Legacy / Wii U / Switch / PC
Attention!
Brook Universal boards without the UP5 Upgrade, on PS5, will only work in games that support Dualshock 4. Please check the compatibility with your favorite games before selecting this PCB.

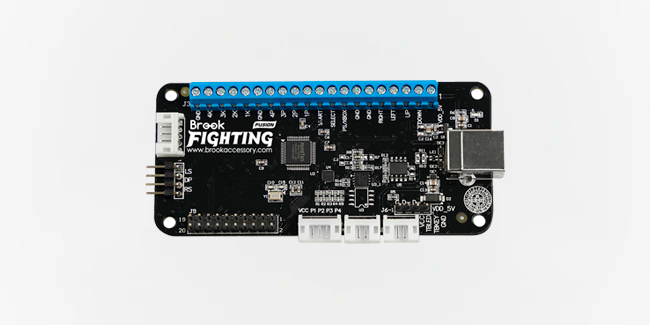

BROOK FUSION
Brook Fusion version PCB, known worldwide. The Ultimate Fighting Board 'Fusion' is designed specifically for fighting games.
Compatible with the following systems:
XBOX X|S / XOne / X360 / PS3 / PS4 / PS5 / Wii U / Switch / PC
Attention!
Some fighting games that weren't designed to work natively on the Arcade Stick may not work.
If a game is not supported, UFBF may stop working on the game after 8 minutes.
Please check the compatibility with your favorite games before selecting this PCB.
